Coastal Dynamics and Erosion

Nearshore sediment exchange

The coastal boundary zone is critical for transfers of sediments and particulate biogeochemical components. Oceanographic forcing across this region causes significant mobilisation and transport of seabed sediments, particularly during energetic winters such as the exemplary 2013/14. Increased storminess due to climate change will significantly impact the shoreface but the governing processes are poorly understood compared with the adjacent inner-shelf and foreshore.

The shoreface is mainly affected by shoaling waves and tidal currents, but recent work indicates that cross-shelf currents, and breaking waves during storms, may be additional important factors. These generate complex benthic boundary layer dynamics at the interface between shelf-sea oceanography and nearshore coastal-processes, facilitating sediment storage, large-scale cross/alongshore sediment transport, and its removal from nearshore sediment cells and beaches.

Work by the Coastal Dynamics and Erosion group is addressing this knowledge gap to enable better understanding and prediction of the coastal impact of large storms and sea-level rise – the availability of sediments and the development of coastal morphology are key factors in coastline protection and, increasingly, the construction and grid-connection of marine renewable energy infrastructure. [Nest frame image]

Rip currents and surf-zone circulation

Rip currents are seaward-directed flows of water driven by breaking waves that originate close to the shoreline and extend seaward across the surf zone, and beyond. Thousands of people drown on beaches worldwide annually and hundreds of thousands more are rescued, mostly because of rip currents. In the UK, RNLI lifeguards report that rip currents are responsible for two-thirds of all water-based incidents that they respond to, and a similar percentage is reported from the USA and Australia. Annual rip current related fatalities exceed 100 in the USA and 20 in Australia.

Furthermore, rip current circulation provides the primary mechanism for flushing the surf zone and therefore affect the marine environment by controlling the mixing and dispersion of nutrients and pollutants from the surf zone to the inner-shelf.

Nearshore cell circulation is driven by incident wave energy dissipation through the generation of cross-shore and alongshore gradients in the radiation stress and the mean nearshore water level. At a qualitative level this theoretical underpinning is reasonably well understood, but in practice it remains problematic to predict exactly when, and under what morphodynamic conditions, rip currents are at their strongest and pose the largest threat to surf zone water users. Two recent research projects (DRIBS and TOPORIP) funded by NERC, RNLI and the Met Office examine the dynamics of rip currents and the implications for beach safety on open coast and engineered beaches, respectively.

Wave attenuation

Rocky coastlines are generally characterised by cliffs fronted by intertidal shore platforms. These rocky shore platforms tend to be gently-sloping and they invariably represent hydrodynamically very rough surfaces. Cliffs and shore platforms are linked dynamically because the platform directly controls the transformation of waves propagating across it, and thus the delivery of energy to the cliffs. Our overarching hypothesis is that the transformation of the wave spectrum across shore platforms is primarily controlled by the elevation, gradient and width of the platform, and the physical roughness of its surface.

Observational data is used to quantify wave energy dissipation by bed friction and wave breaking, and the dissipation rate is used to determine the wave friction factors. In turn, the obtained wave friction factors are correlated to the roughness of the shore platform surface related to the overall morphology and micro-topography as measured using a 3D terrestrial laser scanner.

The improved wave friction parameterisation is being implemented in the open-source XBeach numerical model, and the model is being used at a number of sites to evaluate the effect of changing sea level to the wave energy delivery to the cliff base to explore the potential effect of rising sea level on coastal cliff recession.

Suspended particulate dynamics

The majority of terrestrially derived suspended particulate matter (SPM) is transported to the open ocean by rivers; therefore, the river estuary transition zone (RETZ) represents a globally significant boundary separating the riverine and coastal regimes. The fate of SPM in the RETZ depends on its physical properties which are likely to be extremely variable. The RETZ is characterised by large temporal and spatial gradients in hydrodynamic properties. Therefore, quantifying SPM properties in relation to physical forcing is key to determining the transfer flux of SPM from the catchment to the coastal ocean. One of the aims of this research group is to determine the relationship between floc properties and the turbulence regime in the RETZ of tidally dominated estuaries over tidal, lunar and seasonal temporal scales.



Flocs are fragile in nature and their properties fluctuate on short spatial and temporal

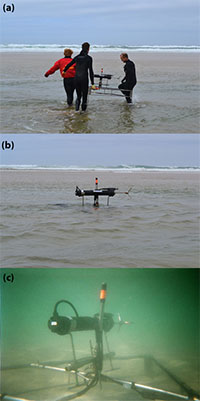

scales; therefore in situ optical instruments (LISST-100X, LISST-HOLO and transmissometer) are deployed in the RETZ to obtain volume concentrations, mass concentrations, shape, area and indicate biological components of SPM. Turbulence measurements are determined via acoustic methods; ADCP and ADVs are deployed near to the bed to estimate TKE dissipation rates relating to floc measurements.

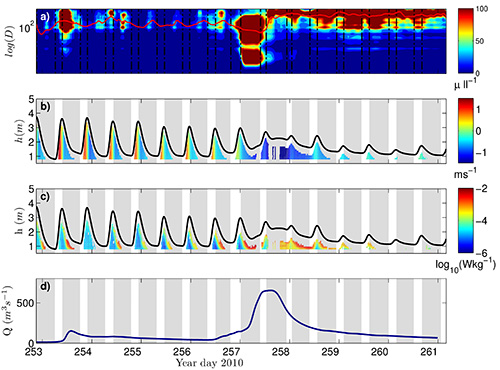

Diurnal and semi-diurnal signals in floc properties can be observed in the RETZ, including resuspension signals coinciding with peak flows and flocculation signals corresponding with low turbulence conditions. Turbulence dissipation as been found to scale with SPM properties on a tidal scale, however this relationship can be modified during periods of increased fluvial influence. Tidal and lunar variations of particle properties in the RETZ have been observed at all seasons sampled. SPM flux in the RETZ showed net seaward transport of coarse and fine particles. Furthermore, during the river flood event (Figure), the seaward flux of both coarse and fine particles was an order of magnitude greater than during normal river flow conditions for a macrotidal estuary.



The RETZ is a complex environment to study however it is essential to gain understanding and quantify the relative importance of hydrodynamic and biological implications controlling SPM characteristics and thus the fate of the transfer of terrestrially derived organic matter to the coastal ocean.

Recent Research Grants

2014 – 16: EP/L025191/1 EPSRC Standard Grant: Waves across shore platforms. PI: Prof Gerd Masselink (Plymouth), co-PI: Dr Martin Austin (Bangor). Total funds: £422K.

2014 - 2015: Welsh European Funding Office: Periodic cross-shelf sediment exchange around a tidal turbine site. PI Dr Martin Austin (Bangor), CI: Prof Colin Jago (Bangor). Total funds: £100K.

2013 - 15: RNLI and Met Office: Rip currents around coastal structures. PI: Dr Tim Scott (Plymouth), co-PI: Dr Martin Austin (Bangor). Total funds: £100K.

2013 - 2015: EU Hydralab: Barrier dynamics experiment 2. PI Prof Gerd Masselink (Plymouth), CI: Dr Ian Turner (UNSW), CI: Dr Jack Puleo (Delaware), CI: Dr Martin Austin (Bangor). Total funds: £250K.

Associated publications

Austin, M J, Masselink, G., Scott, T. M., and Russell, P. E. (2014).
Water-level controls on macro-tidal rip currents. Continental Shelf Research 75, 28-40

Austin, M. J., T. M. Scott, J. W. Brown, J. A. Brown, J. H. MacMahan, G Masselink, and P. E. Russell (2010).
Temporal observations of rip current circulation on a macro-tidal beach. Continental Shelf Research 30(9), 1149-1165.

Austin, M. J., T. M. Scott, P. E. Russell, and G Masselink (2013).
Rip current prediction: development, validation and evaluation of an operational tool. Journal of Coastal Research 29(2), 283-300.

Ruju, A., Conley, D., Masselink, G., Austin, M. J., Puleo, J., Lanckriet, T., and Foster, D. (2015).
Boundary layer dynamics in the swash zone under large-scale laboratory conditions. Coastal Engineering, 1-15. doi: 10.1016/j.coastaleng.2015.08.004.

Scott, T., Austin, M. J., Masselink, G., and Russell, P. (2016).
Dynamics of rip currents associated with groynes - field measurements, modelling and implications for beach safety. Coastal Engineering, 107, 53-69.
